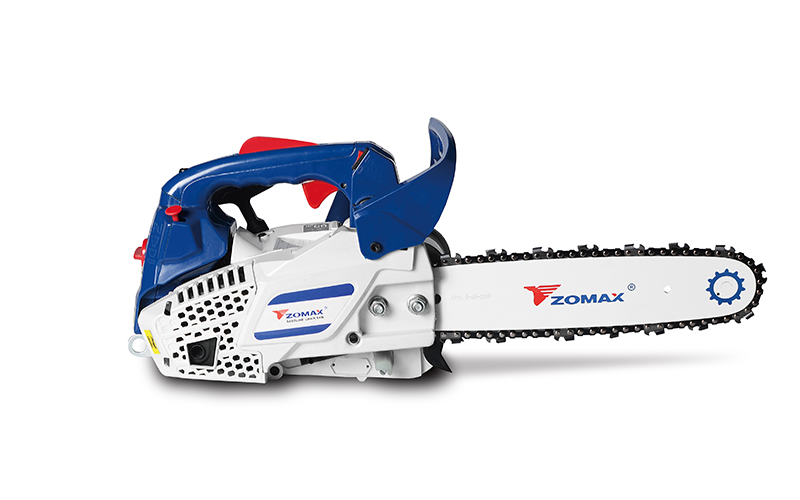

ZMC2501 Gasoline Chainsaw
ZMC2501 Gasoline Chainsaw
Newly developed 25.4cc Top Handle chainsaw, provide great comfort by ergonomic design. Complied with GS standard,safety distance from front handle to handle.360° fine cuts,light weight, ideal for branch cutting and curving.
-
Displacement
25.4cc
-
Rated Power
0.8 kW/ 1.1hp
-
Dry Weight
3.2 kg
FEATURES
By increasing the design of large heat sink at the top, the working temperature of power is obviously reduced, the phenomenon that it is dificult to start at high temperature is reduced, and the life of cylinder is greatly improved.
VIEW MORE
A two-stage air guide bar is designed, which can effectively cool the front and back parts of the cylinder.
VIEW MORE
Add the outlet so that the cooling air of the cylinder can accelerate the flow rate and improve the cooling performance of the power.
VIEW MORESPECIFICATION
| Mode | ZMC2501 |
| Displacement | 25.4 cc |
| Rated Power | 0.8 kW/1.1 hp |
| Bore/Stroke | φ34/28 mm |
| Dry Weight | 32kg |
| Carburetor | Diaphragm type |
| Ignition System | CDI |
| Max Speed | 12,500 rpm |
| Idle Speed | 3300±300pm |
| FuelCapacity | 400 ml |
| Oil Capacity | 240 ml |
| Oil & Fuel Ratio | 1:40 |
| Bar Lengths | 10"(25cm)/12"(30cm) |
